How to model heterogeneous site conditions or management

This tutorial assumes that you have read the basic tutorial How to prepare the input data to start a simulation. We will use an existing input object and change the number of patches to two and remove the management in the second patch.

import GrasslandTraitSim as sim

using CairoMakie
using DimensionalData
using Statistics
using Unitful

patch_xdim = 2
patch_ydim = 1

input_obj_prep = sim.validation_input("HEG01"; nspecies = 70, trait_seed = 99);

# --------------- change the number of patches
simp_prep = Dict()
for k in keys(input_obj_prep.simp)
    simp_prep[k] = input_obj_prep.simp[k]
end
simp_prep[:patch_xdim] = patch_xdim
simp_prep[:patch_ydim] = patch_ydim
simp_prep[:npatches] = patch_xdim * patch_ydim
simp_prep[:ts] = input_obj_prep.simp.ts
simp = NamedTuple(simp_prep)

# --------------- transform (copy) one dimensional to two dimensional arrays in x-direction
t_axis_exist(x) = !isnothing(DimensionalData.dims(x, :t))
daily_input_prep = Dict()
for k in keys(input_obj_prep.input)
    dat = input_obj_prep.input[k]
    dat_new = t_axis_exist(dat) ? dat[:, [1, 1], :] : dat[[1, 1], :]
    daily_input_prep[k] = set(dat_new, :x => 1:2)
end

# --------------- change the management
mowing_prep = daily_input_prep[:CUT_mowing]
CUT_mowing = Array{Union{Missing, typeof(1.0u"m")}}(missing, length(mowing_prep) ÷ 2, patch_xdim, patch_ydim)
CUT_mowing[:, 1, 1] .= mowing_prep[:, 1, 1]

grazing_prep = daily_input_prep[:LD_grazing]
LD_grazing = Array{Union{Missing, typeof(1.0u"ha^-1")}}(missing, length(grazing_prep) ÷ 2, patch_xdim, patch_ydim)
LD_grazing[:, 1, 1] .= grazing_prep[:, 1, 1]

daily_input_prep[:CUT_mowing] = CUT_mowing
daily_input_prep[:LD_grazing] = LD_grazing
input = NamedTuple(daily_input_prep)

# --------------- add everything together

input_obj = (; input, simp)
p = sim.optim_parameter()
trait_input = sim.input_traits()
sol = sim.solve_prob(; input_obj, p, trait_input);

patch_biomass = dropdims(sum(sol.output.above_biomass; dims = :species); dims = :species)

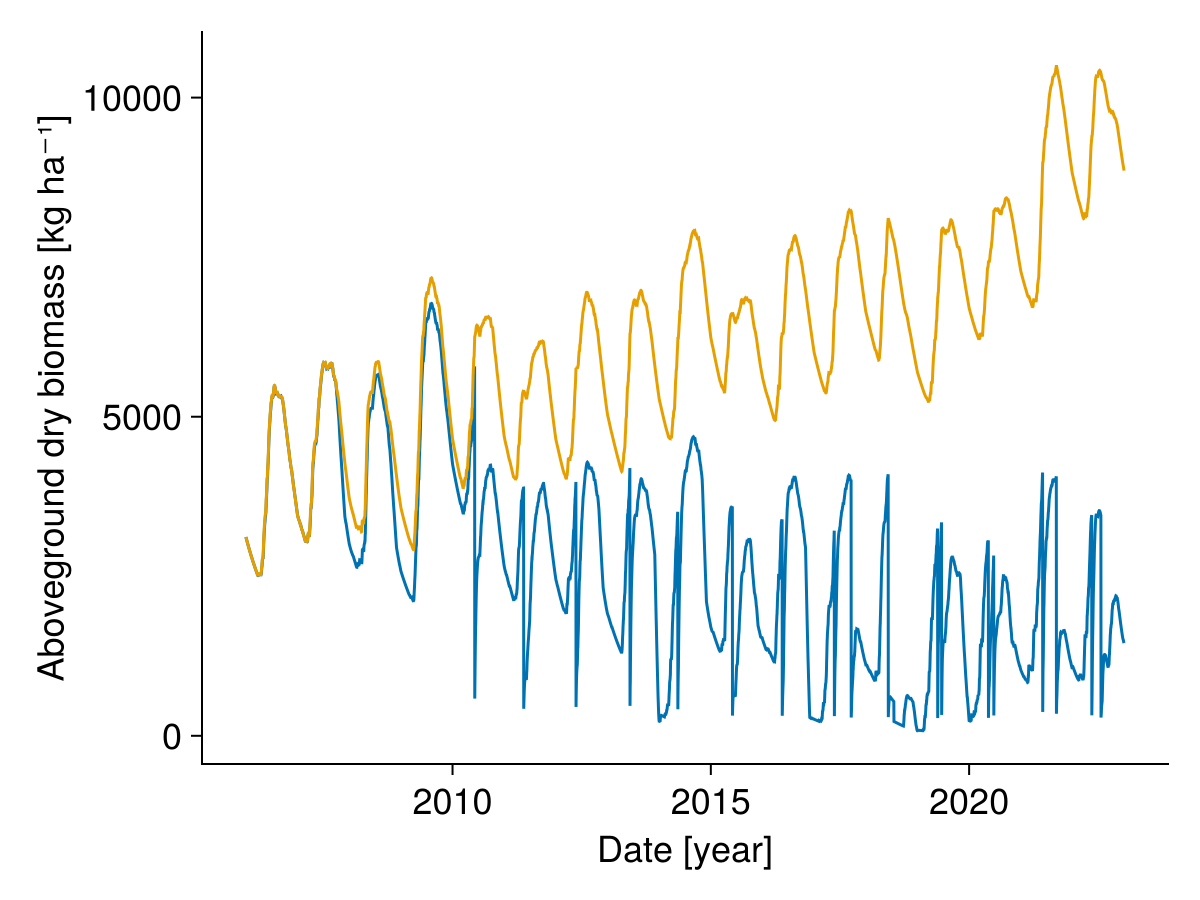

begin
    fig = Figure()
    Axis(fig[1, 1];
         ylabel = "Aboveground dry biomass [kg ha⁻¹]",
         xlabel = "Date [year]")

    for x in Base.OneTo(patch_xdim)
        for y in Base.OneTo(patch_ydim)
            lines!(sol.simp.output_date_num, vec(ustrip.(patch_biomass[:, x, y]));)
        end
    end

    fig
end
