How to turn-off subprocesses of the model

Mainly for debugging purposes, it is possible to turn off subprocesses of the model. This can be useful to understand the effect of a single subprocess on the model output.

Load packages:

import GrasslandTraitSim as sim
using CairoMakie
using Unitful
using Statistics

All the subprocesses that can be turned off are listed here:

sim.create_included()

(senescence = true, senescence_season = true, senescence_sla = true, potential_growth = true, mowing = true, grazing = true, belowground_competition = true, community_self_shading = true, height_competition = true, water_growth_reduction = true, nutrient_growth_reduction = true, root_invest = true, temperature_growth_reduction = true, seasonal_growth_adjustment = true, radiation_growth_reduction = true)

We have to write all the processes that we want to turn off in the included named tuple. By default, all other processes are included. Here we want to exclude the potential growth of the species. The named tuple looks as follows:

included = (;
    potential_growth = false,
)

trait_input = sim.input_traits()
input_obj = sim.validation_input("HEG01"; included);
p = sim.optim_parameter();

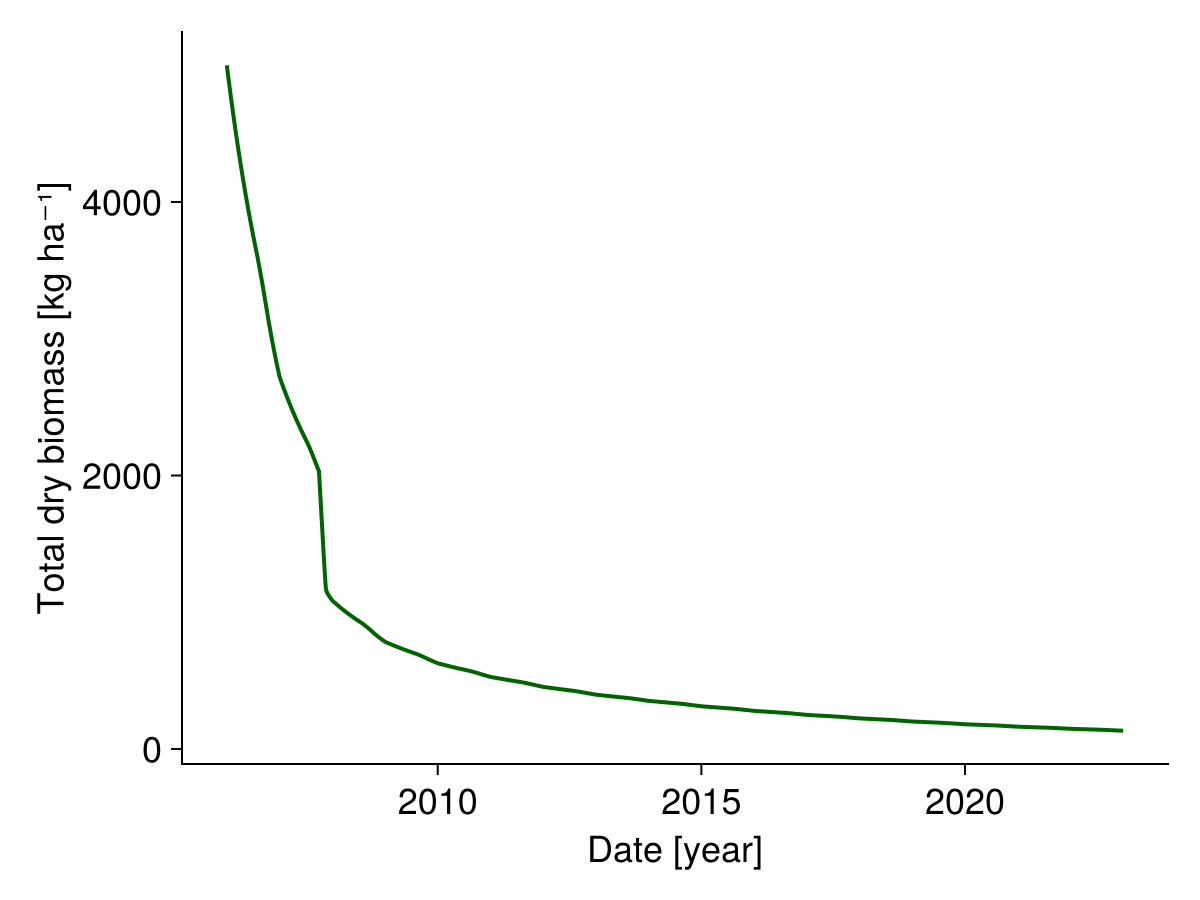

Run the simulation and let's visualize the biomass dynamic without potential growth:

sol = sim.solve_prob(; input_obj, p, trait_input);

species_biomass = dropdims(mean(sol.output.biomass; dims = (:x, :y)); dims = (:x, :y))
total_biomass = vec(sum(species_biomass; dims = :species))

fig, _ = lines(sol.simp.output_date_num, ustrip.(total_biomass), color = :darkgreen, linewidth = 2;
      axis = (; ylabel = "Total dry biomass [kg ha⁻¹]",
                xlabel = "Date [year]"))
fig
